| MOQ: | 1 セット |
| 価格: | Negotiation ( EXW , FOB or CIF price ) |
| 標準パッケージ: | 輸出木の場合かパレット |
| 配達期間: | 5-7 仕事日 |
| 決済方法: | / TのL / CのTは、ウェスタンユニオン |
| 供給能力: | 1 年ごとの 1000 セット |

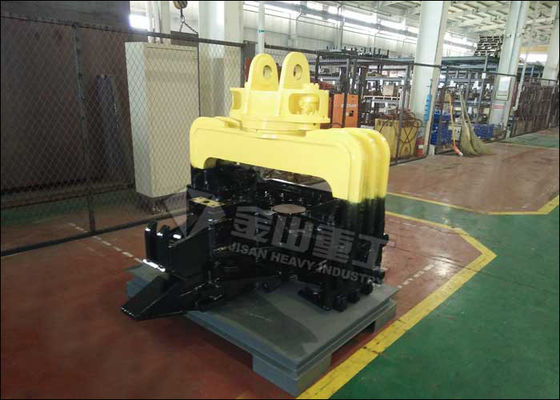

Construction Parts Hydraulic Vibrating Steel Pile Hammer For PC400 Excavator
The efficiency of vibrating pile hammer is much higher than other piling machine. Excavator mounted vibrating pile hammer can be applied to steel sheet pile, steel pipe pile and long slender concrete pile within 8 meters. The vibrating pile hammer is most suitable for working in sand, water and poorer effect in the clay which must choose higher power machines.
Features
1. Special steel material with high ductility and wear resistance.
2. Driven by motor, utilizing a kind of exciting force produced by reciprocating motion of centrifugal force up and down.
3. Original imported motor, more durable, high swinging speed and frequency.
4. All bearings are originally imported with longer life service.
5. Flexible single chuck, double chuck styles can be designed.
6. Hydraulic vibratory pile hammer is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc. Applied to pull or pile sheet piles, I-steel piles, cement square pile, cylinder pile and etc.
Parameter
| ItemModel | Unit | JSP20 | JSP40 | |
| Eccentric Moment | Nm | 40 | 85 | |
| Frequency | rpm | 2800 | 2800 | |
| Centrifugal Force | KN | 300 | 570 | |
| Amplitude | mm | 6.8 | 14 | |
| Working Pressure | bar | 280 | 300 | |
| Oil Flow | L/min | 155 | 255 | |
| Max Turning | degree | 270 | 270 | |
| Weight | Main Body | kg | 2080 | 2940 |
| Extension Boom | kg | 740 | 1070 | |
| Total weight | kg | 2900 | 4100 | |
| Applicable Excavator | Ton | 20-30 | 35-50 | |
Applied to pull or pile sheet piles, I-steel piles, cement square pile, cylinder pile and etc.
Company Introduction
JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
